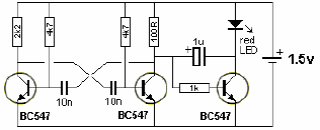

In the figure we have the way to activate a red LED that needs 1.7 V or even others with higher voltage with a 1.5 V supply. The circuit has a doubling action and must be tested according to the LED.
1 5 V LED (CB20424E)
- Details
- Written by: Newton C. Braga
