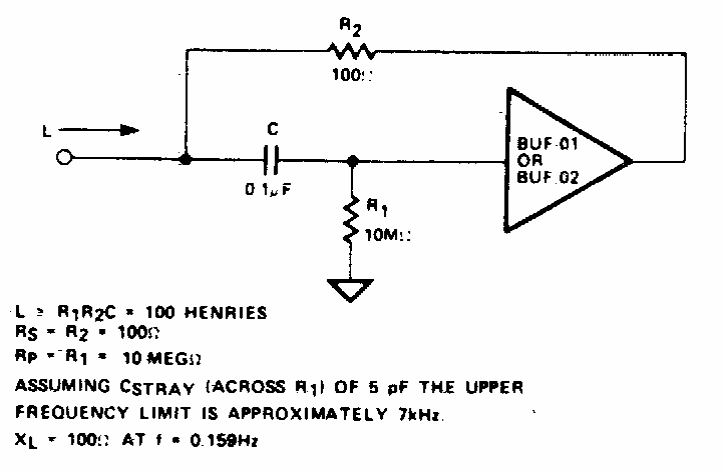

This circuit simulates an inductor. Or operational amplifier of old type, but a configuration is valid for equivalent modern operations. The power supply must be symmetric and at maximum frequency depending on the operational.
