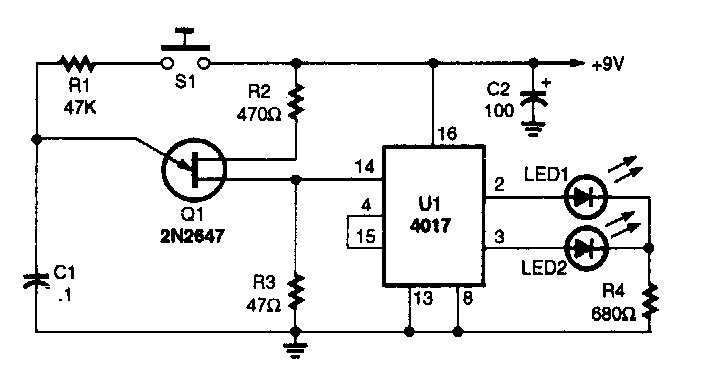

Toss (CB20959E)

This game was found in an old Popular Electronics. The unijunction transistor can be 2N2646. The supply can be done with voltages from 6 to 12 V.

| Clique na imagem para ampliar |
