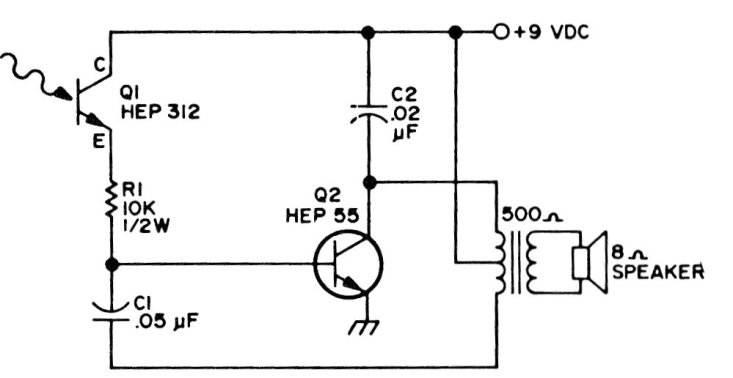

This Hartley oscillator uses an audio output transformer that can be obtained from small, unused transistor radios. The transistor can be any general purpose and the phototransistor of any type.
| Clique na imagem para ampliar |
Oscillator triggered by light (CB20355E)
- Details
- Written by: Newton C. Braga
