Video driver with impedance matching (CB20915E)

Details
Written by: Newton C. Braga

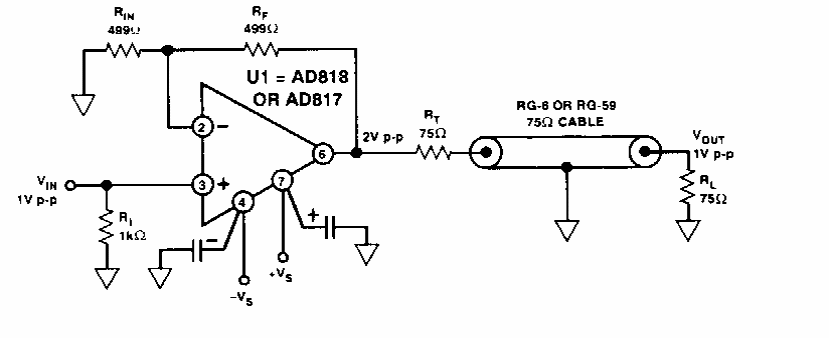

In this circuit of an old American documentation, the input impedance is the same as the output impedance. The circuit has a sensitivity of 1 Vpp at 75 ohms.




| Clique na imagem para ampliar |
