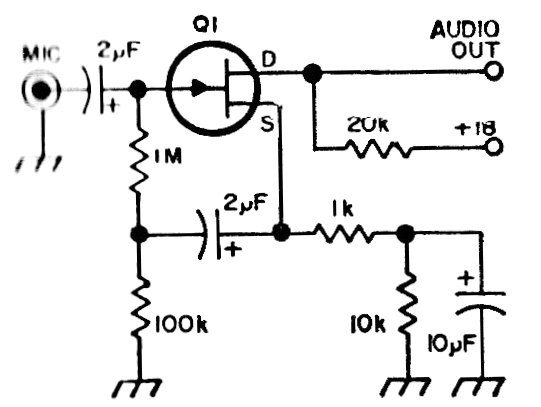

This circuit, with a configuration like to many that we can find in this section, was suggested by a manual from the 70's. Any general purpose JFET can be used as the MPF102 or BF245 consumption is very low.
JFET Microphone Amplifier (CB20010E)
- Details
- Written by: Newton C. Braga
