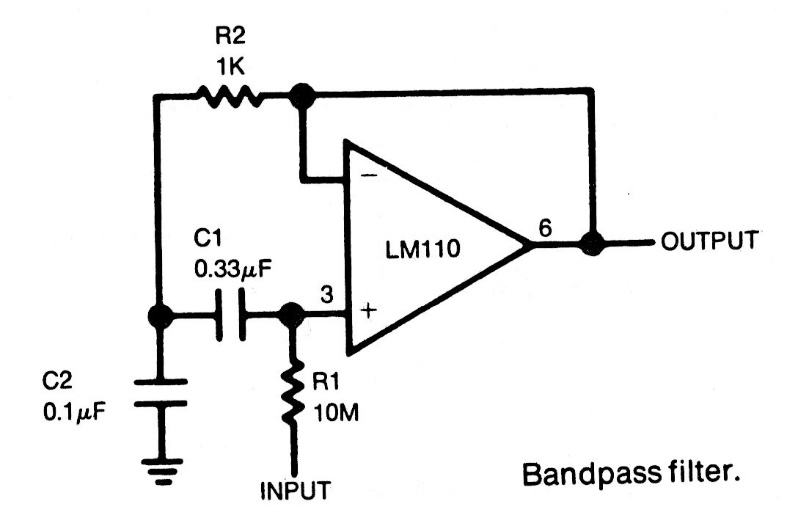

Using an operational that is not common today, but which admits a modern equivalent, we found this circuit in a documentation from the 80s. The power supply must be symmetrical with voltage according to the operational.
