12 V to 300 V Inverter (CB20183E)

Details
Written by: Newton C. Braga

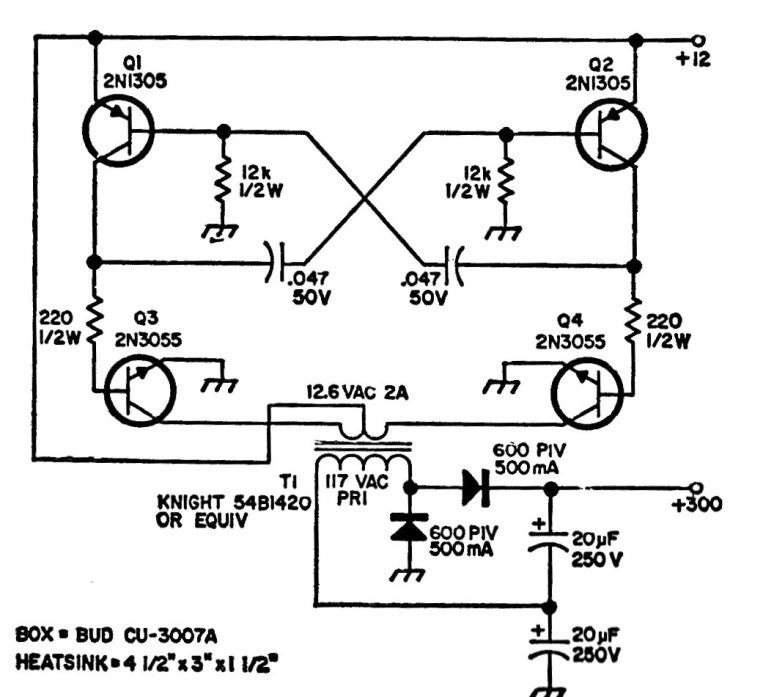

This inverter circuit with transistors provides a voltage of 300 V from a 12 V supply. The current, with the original transistors, is only 55 mA. Transistors must be mounted on heatsinks.
