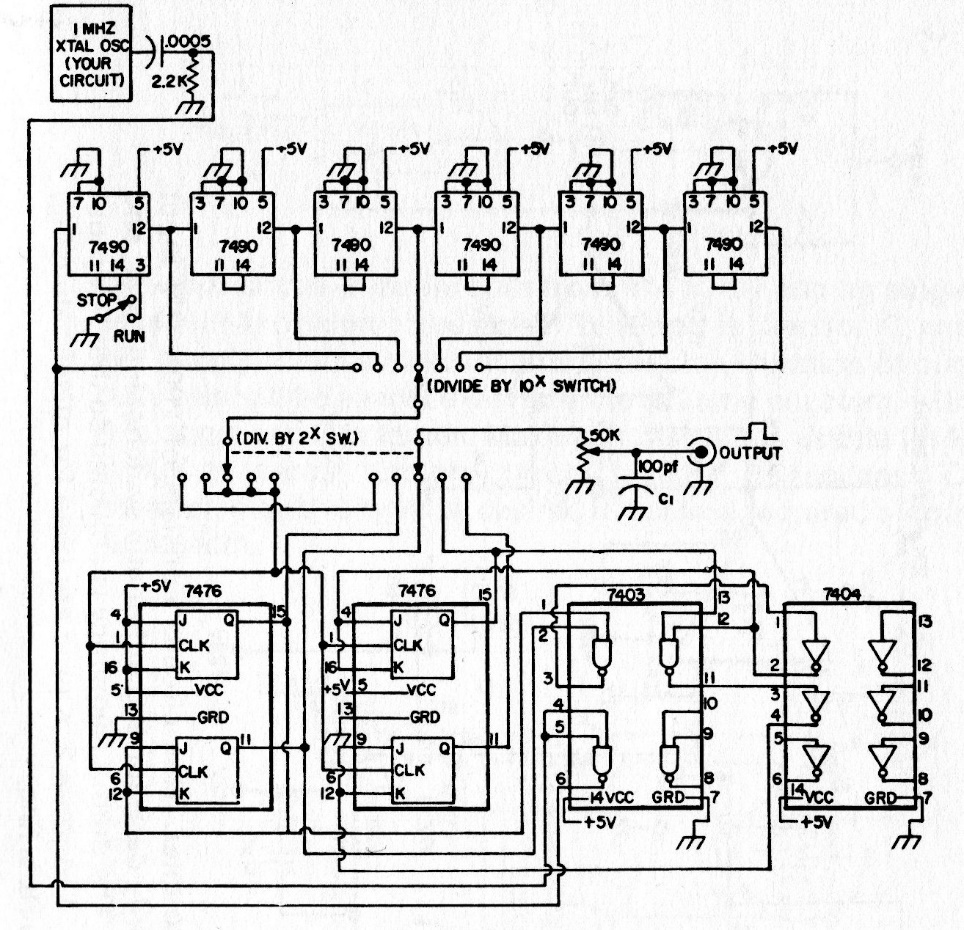

This pattern of TTL frequencies was found in an 80s manual. The circuit must be powered by 5 V and is compatible with current microcontrollers. Accuracy depends on the input oscillator, which should preferably use crystal.
| Clique na imagem para ampliar |
