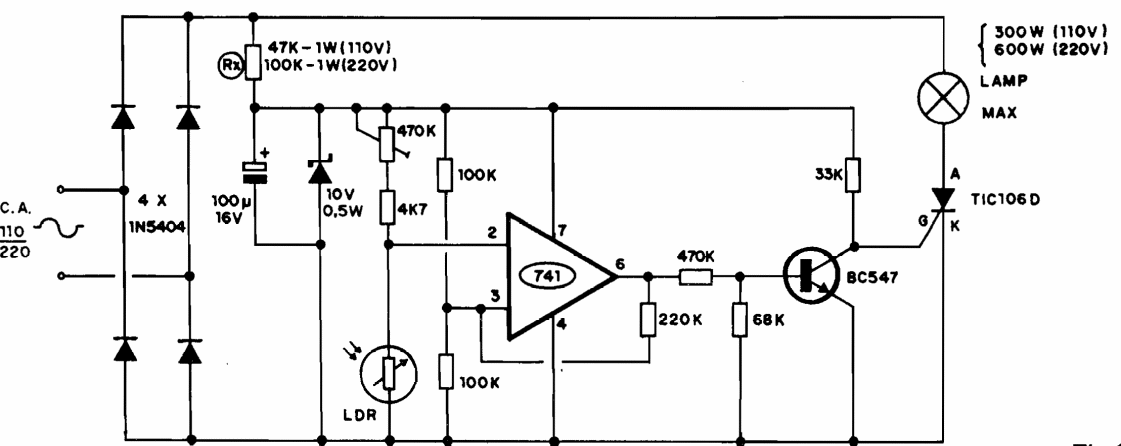

This good night light circuit using an incandescent lamp was found in old documentation, but it is totally feasible, as the components used are still common in our market. The SCR must be equipped with a heat sink and the LDR mounted on a tube to receive only ambient light.
| Clique na imagem para ampliar |
