Safety Light (CB20320E)

Details
Written by: Newton C. Braga

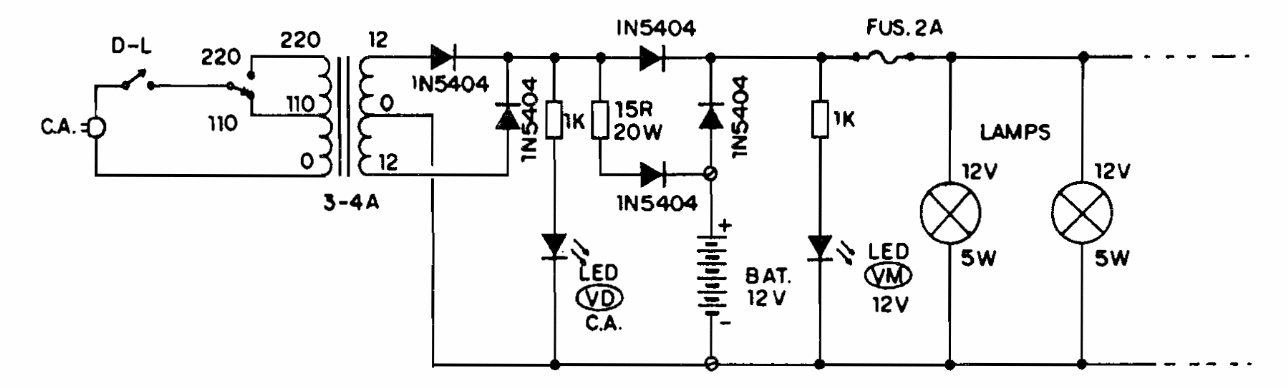

This circuit keeps a set of lamps permanently on, even when there is a power cut. The circuit can be adapted to use LEDs and the 12 V battery can also be changed according to the lamps or LEDs.
