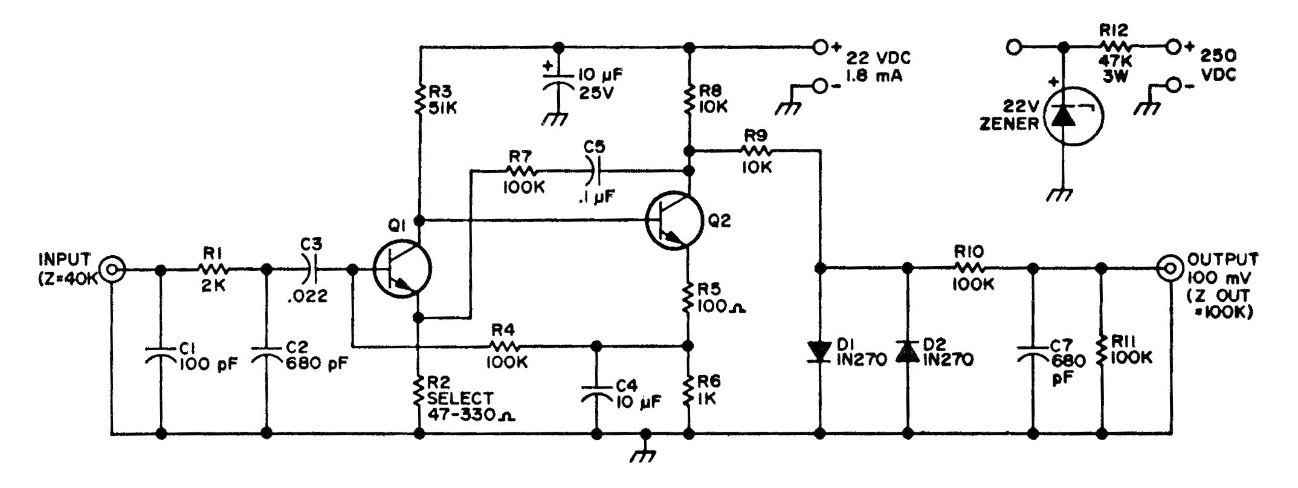

This circuit conditions an audio signal, acting as a filter, control, and reaper of signals. The circuit is from American documentation from the 79s. The transistors can be the BC548, original equivalents of those indicated in the original design.
| Clique na imagem para ampliar |
