1-transistor radio (CB20247E)

Details
Written by: Newton C. Braga

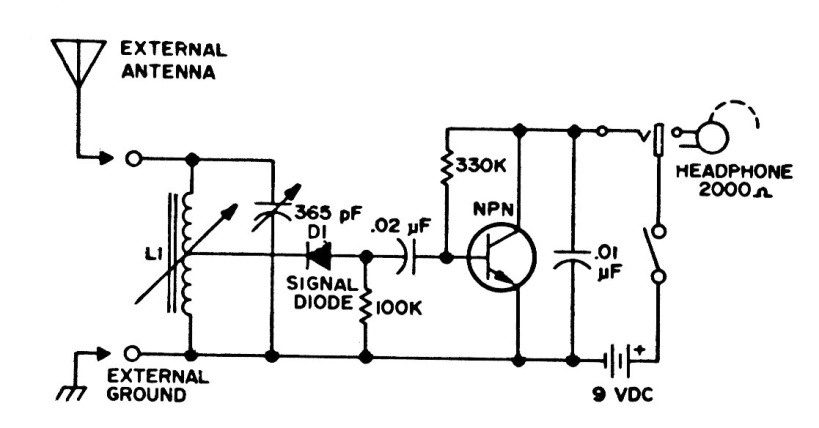

This medium wave radio works with any general purpose NPN transistor. The diode must be made of germanium and a coil formed by 50 + 50 turns of wire 26 to 30 on a ferrite rod.




| Clique na imagem para ampliar |
