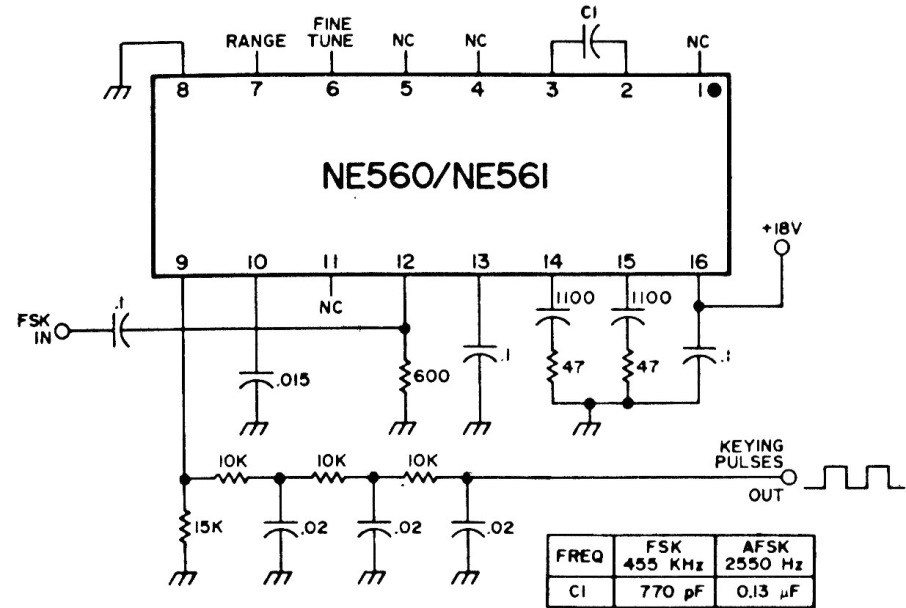

RTTY Converter (CB20264E)

Details
Written by: Newton C. Braga



This circuit was found in an old documentation for radio amateurs. The circuit makes use of an uncommon integrated today. The circuit converts telegraph signals to be used on the computer.
