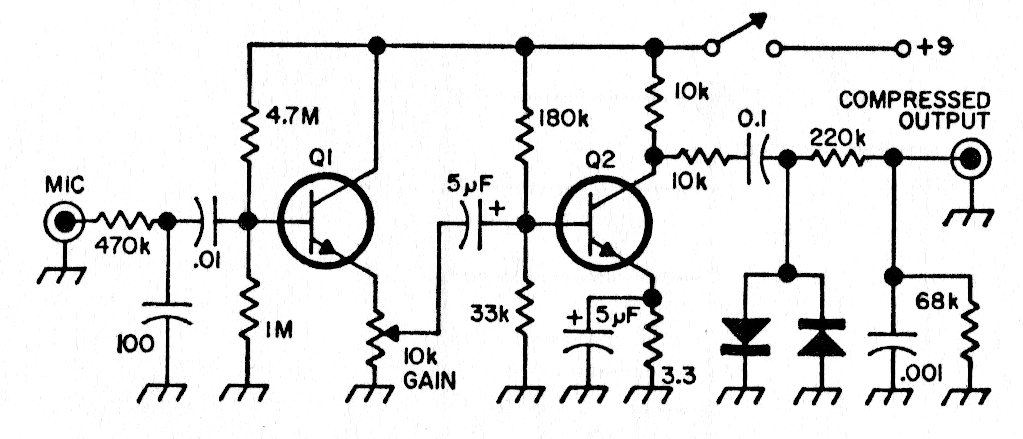

This circuit from an old documentation (1970s) combines the function of cutting or limiting the intensity of an audio signal, avoiding the saturation of the circuit and also operates as a good gain amplifier. The transistors can be the BC548.
