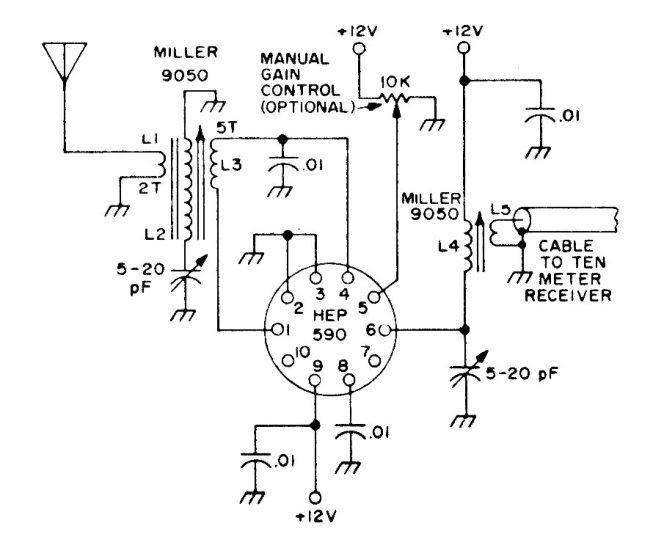

28 Mhz preamplifier (CB20265E)

We found this preamplifier for the 10 and 11-meter range in an old documentation for radio amateurs. The integrated circuit used is uncommon today.
