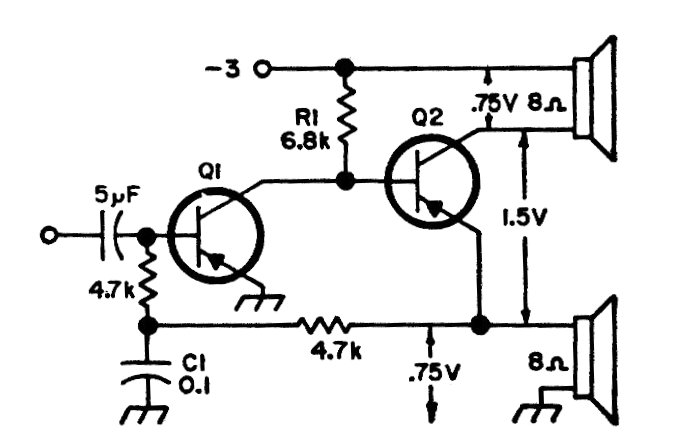

Another circuit showing this configuration since there are others in this same section with similar configurations. It provides a frequency response of up to 30 kHz and the output transistor can be the BD136.
| Clique na imagem para ampliar |
Push Pull with 1 Transistor (CB20055E)
- Details
- Written by: Newton C. Braga
