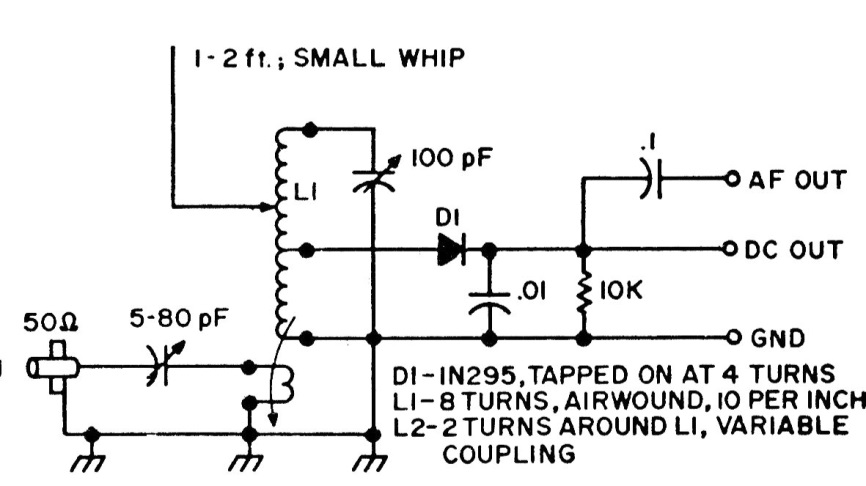

This detector circuit can be used to check the operation of small transmitters or as an input step for receivers. The coil depends on the frequency range in which the circuit must operate, in this case for 15 MHz to 30 MHz.
