One Pulse Per Second Generator (CB20136E)

Details
Written by: Newton C. Braga



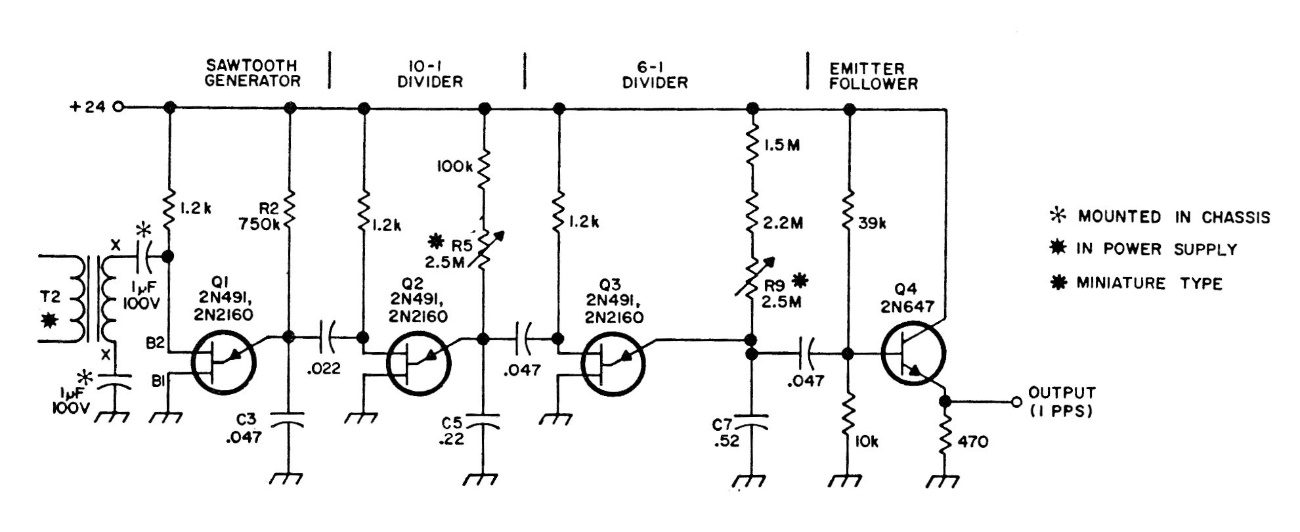

This circuit was found in documentation from the 80s. It is based on unijunction transistors not very common today being synchronized by the 60 Hz power grid.
