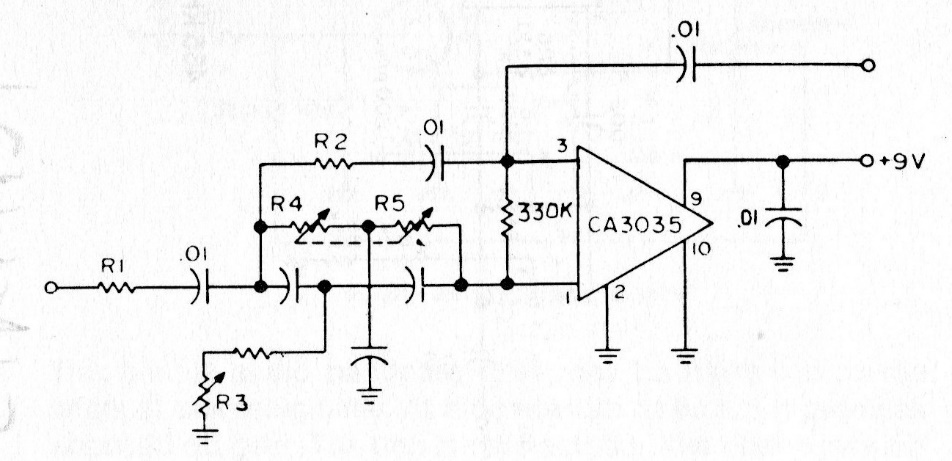

Variable Notch Filter (CB20082E)

Details
Written by: Newton C. Braga



This circuit was found in documentation from the 1980s. The integrated circuit used is uncommon today but can be replaced by a modern one. Capacitors and resistors determine the operating frequency range.
