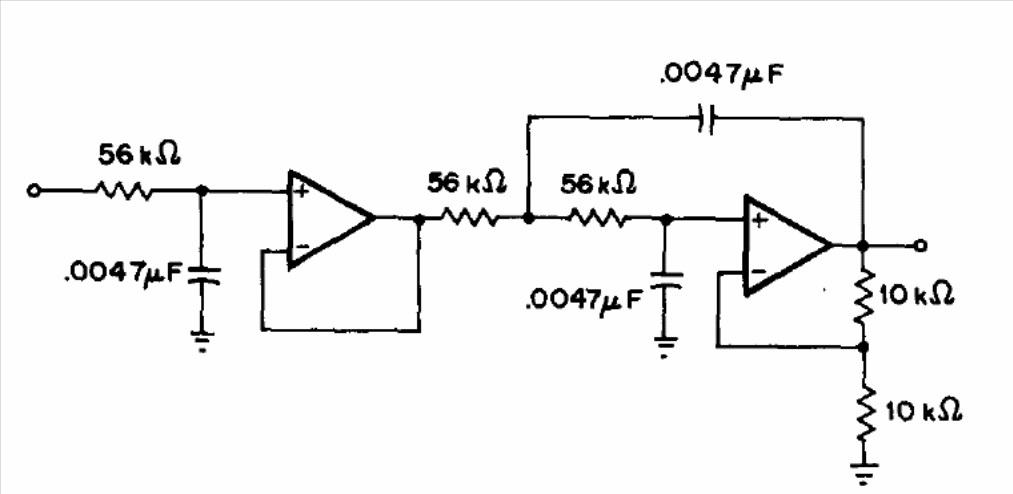

We found this circuit in an American publication from 1977. Operationals can be type 741 with symmetrical source. Components must have a 5% tolerance for the given frequency but can be changed to other frequencies.
| Clique na imagem para ampliar |
Third Order 600 Hz Low Pass Filter (CB13445E)
- Details
- Written by: Newton C. Braga
