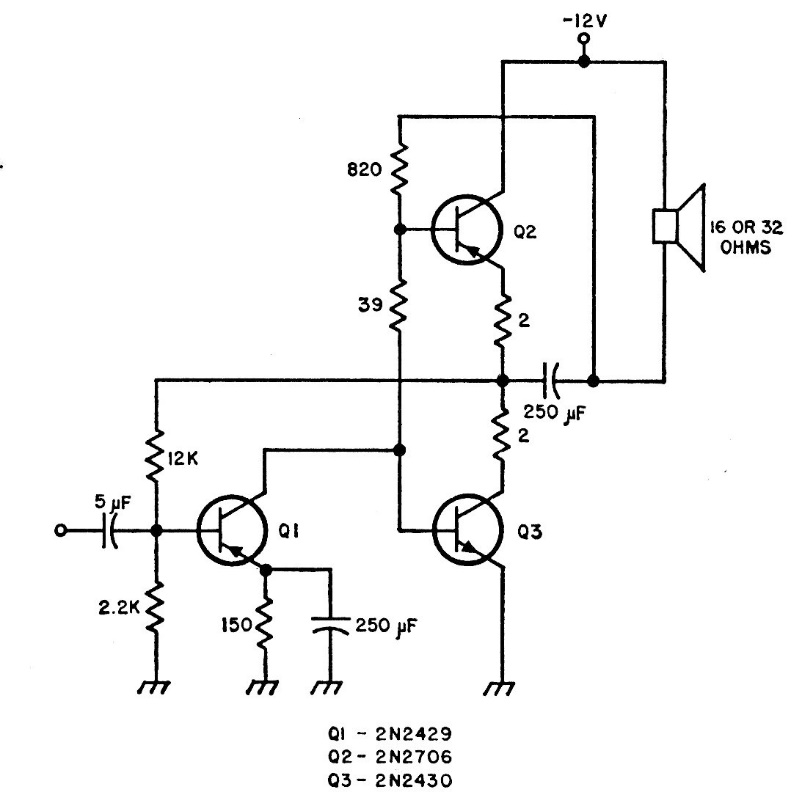

This circuit is from 70's documentation. The output transistors can be BC548 and BC549. The driver may be the BC558. The supply is made with 12 V. The circuit has a response from 15 Hz to 130 kHz.
| Clique na imagem para ampliar |
470 mW Transistor Amplifier (CB20048E)
- Details
- Written by: Newton C. Braga
