Simple 6 or 9 V power supply (CB24317E)

Details
Written by: Newton C. Braga

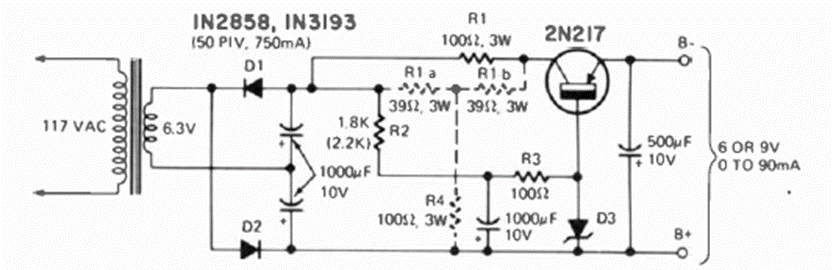

This 1-transistor circuit for currents up to 50 mA was found in the August 1974 Radio Electronics magazine. The transformer is 50 to 200 mA.
