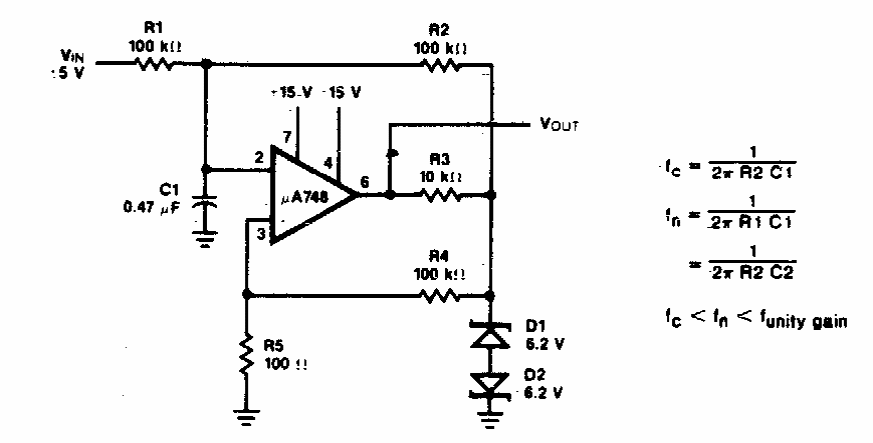

Found in documentation from the 1970s, this circuit employs an operational amplifier from that time. Modern equivalents can be used. The characteristics are given by the components, calculated by the formulas next to the diagram.
