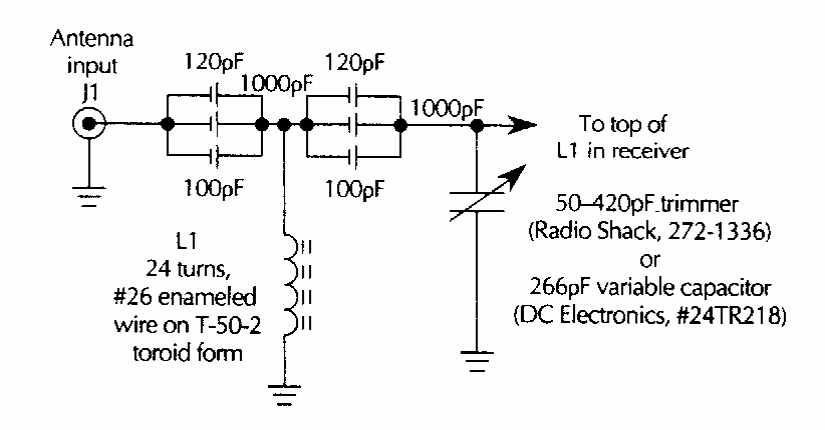

Wave filter for short wave receiver (CB20936E)

This circuit is tuned to reject stations of different wave bands that may be interfering with the reception of short waves.
