Telephone Line Simulator (CB16790E)

Details
Written by: Newton C. Braga

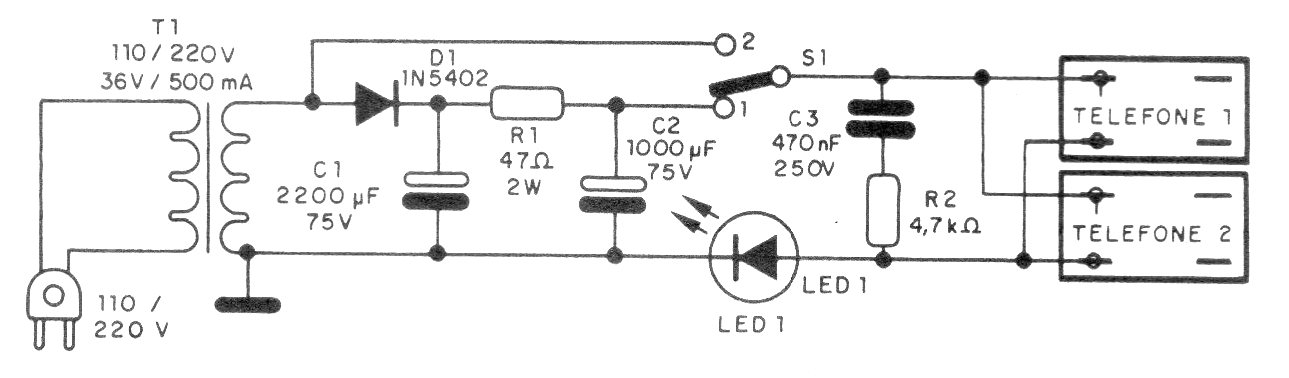

This circuit allows you to simulate an analog telephone line for the repair and testing of devices. The circuit is from 1994 and all the components used are common.
