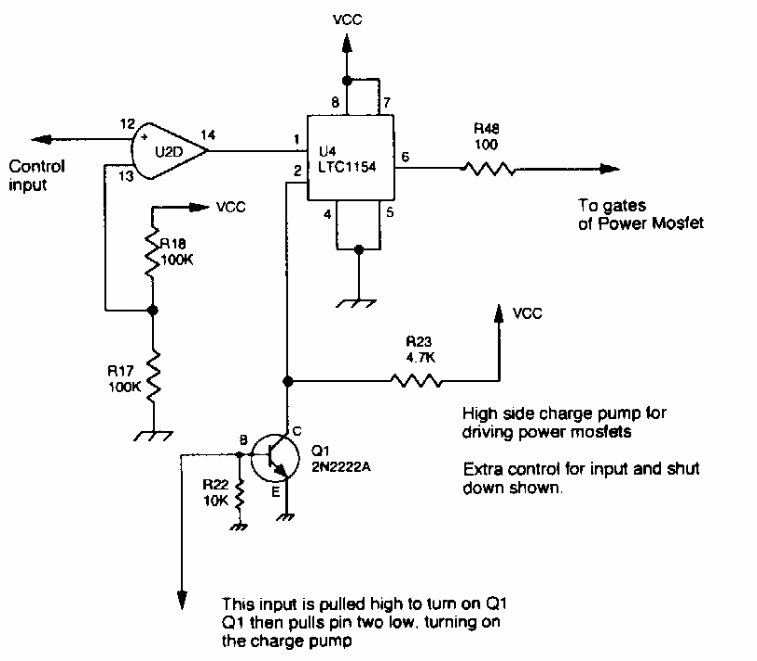

Found in old documentation for radio amateurs, this circuit is intended to excite a MOSFET on the positive side of the power supply (High-Side). The integrated circuit used is not very common today.
| Clique na imagem para ampliar |
High Side MOSFET Driver (CB20919E)
- Details
- Written by: Newton C. Braga
