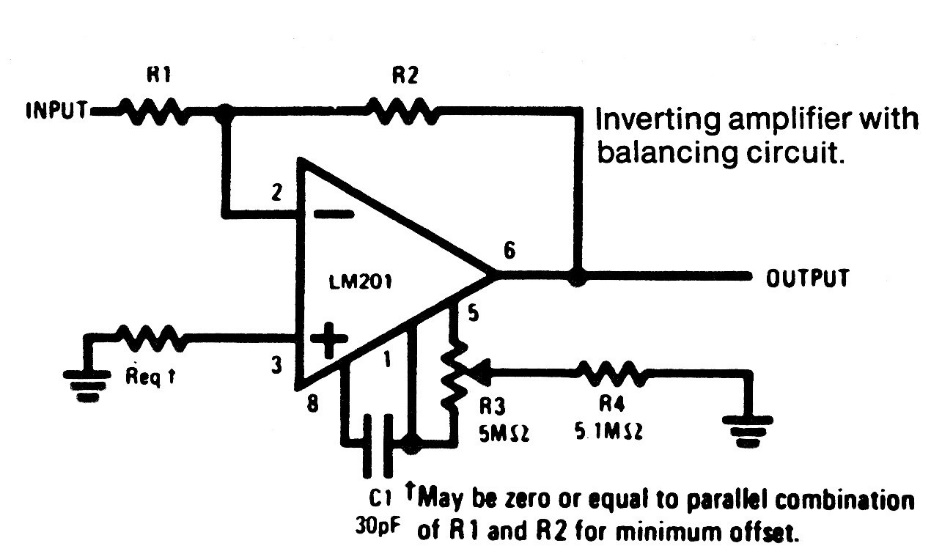

The operational amplifier of this balanced circuit is old and can, however, be implemented with modern operational ones. The source must be symmetrical and R2 determines the gain together with R1 which also influences the input impedance.
