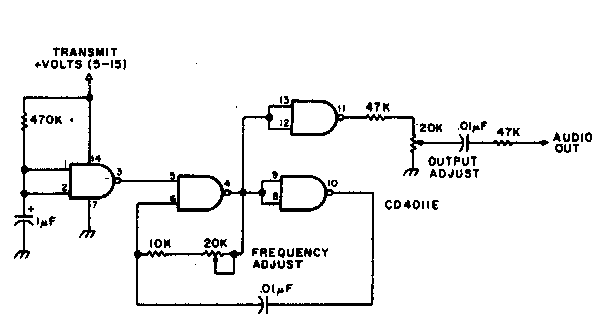

This circuit can work with the previous one generating signals, that can be decoded by it. The circuit is based on a common integrated circuit and the frequency is adjusted in the 20k trimpot and the intensity in the output trimpot.
Tone Burst Oscillator (CB20617E)
- Details
- Written by: Newton C. Braga
