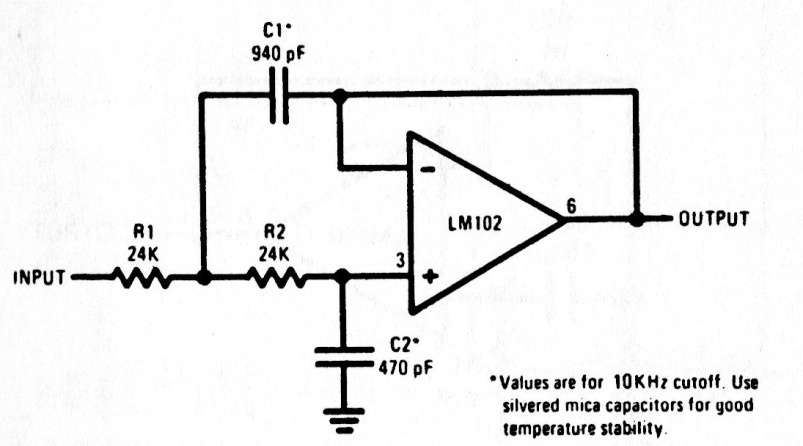

The operational amplifier used in this circuit admits an equivalent, since the circuit is from old documentation. The components are calculated for a frequency of 10 kHz and the power supply must be symmetrical.
| Clique na imagem para ampliar |
Active Low Pass Filter (CB20089E)
