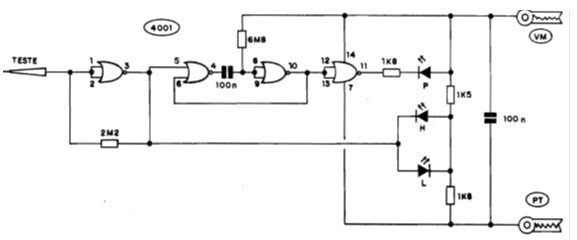

This circuit can work with both TTL and CMOS circuits depending on the power supply. The circuit is powered by the circuit under test and has 3 LEDs of different colors as indicators.
Logic Probe (CB20314E)
- Details
- Written by: Newton C. Braga
This circuit can work with both TTL and CMOS circuits depending on the power supply. The circuit is powered by the circuit under test and has 3 LEDs of different colors as indicators.
