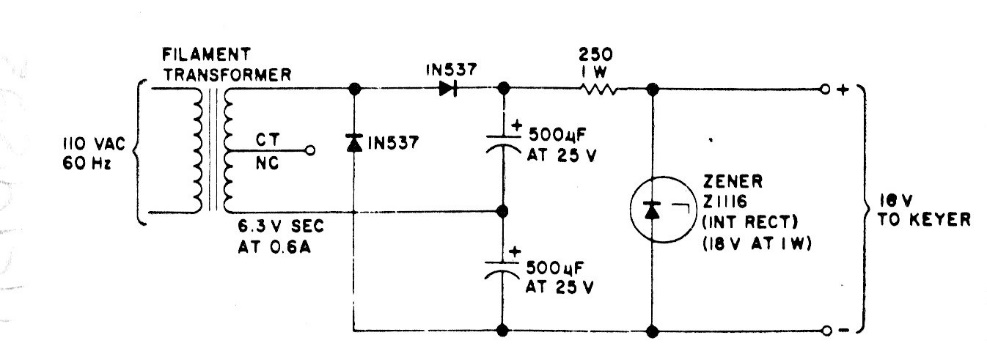

In the figure we have the way to obtain a voltage of 18 V from a 6.3 V transformer with central socket. The current depends on the transformer and the capacitors and the regulation is done by the zener diode.
| Clique na imagem para ampliar |
18 V Voltage Doubler (CB20180E)
- Details
- Written by: Newton C. Braga
