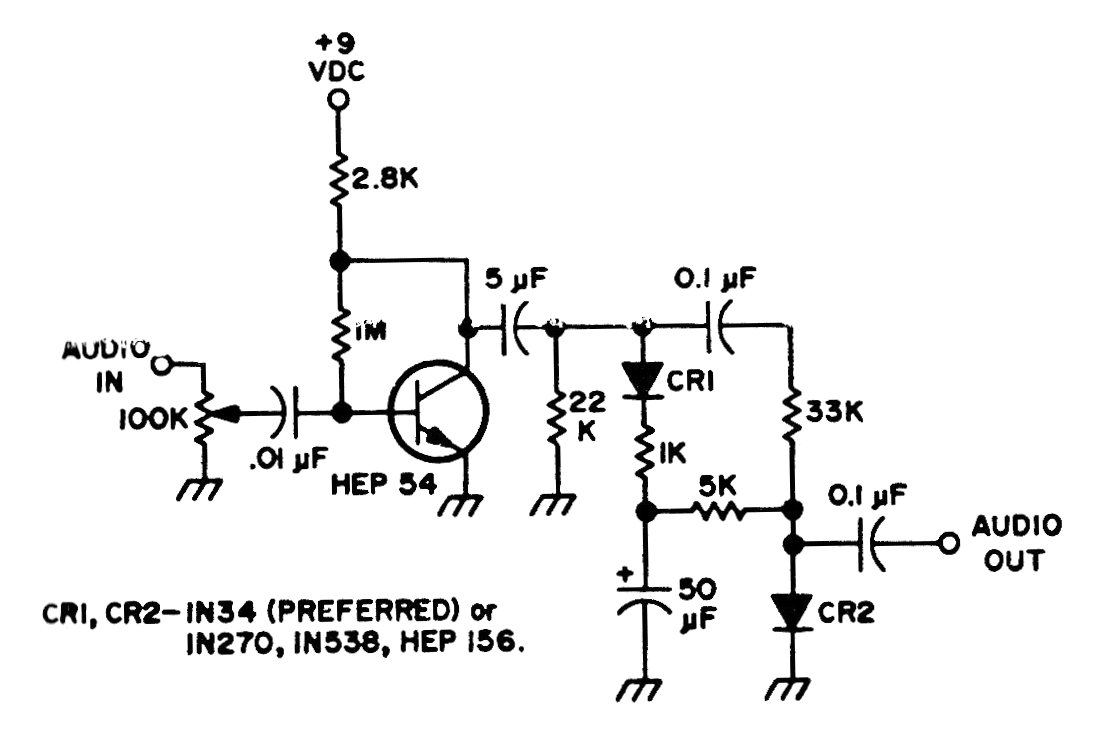

This circuit, from a Motorola manual, uses transistors from the time, but can be implemented with a BC548. The diodes are general-purpose, and the power must come from a source or battery since consumption is low.
| Clique na imagem para ampliar |
Audio Compressor and Preamplifier (CB20009E)
- Details
- Written by: Newton C. Braga
