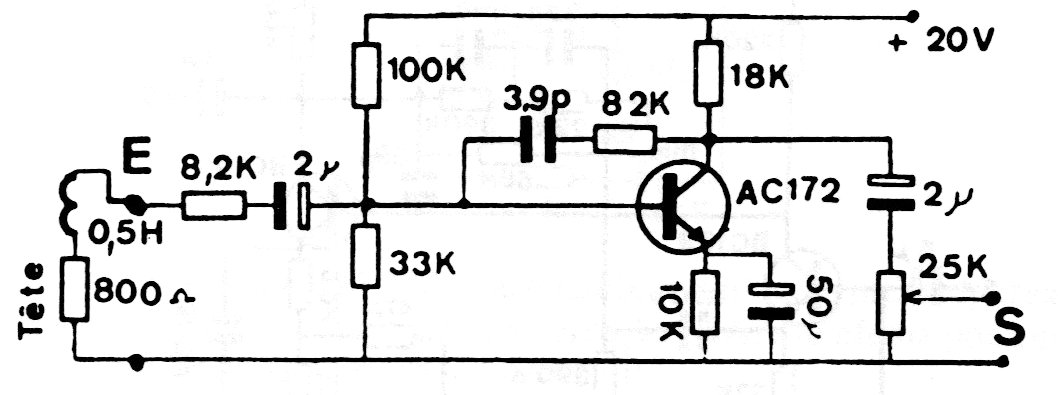

This circuit was found in documentation from the 90s, being indicated for use with tape recorders given its equalization. The transistor of the time can be replaced by a current equivalent, with minor changes that may be necessary in the polarization resistors.
