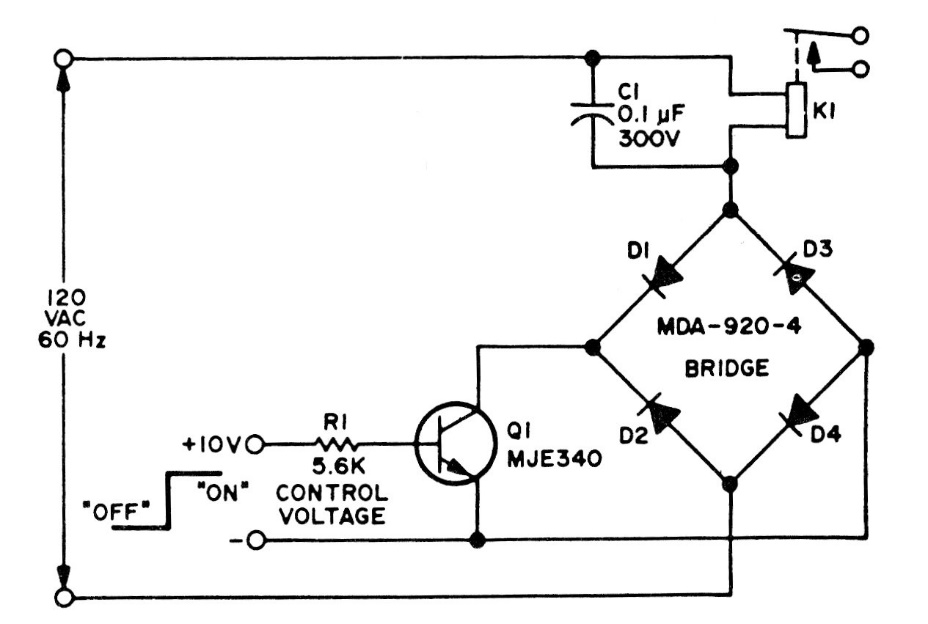

This is an old configuration that can be modified to operate with 5 V (use 1k on the base resistor) and the transistor can be a modern equivalent. The diodes can be 1N4004, depending on the load current or the relay, which must be of the AC type.
