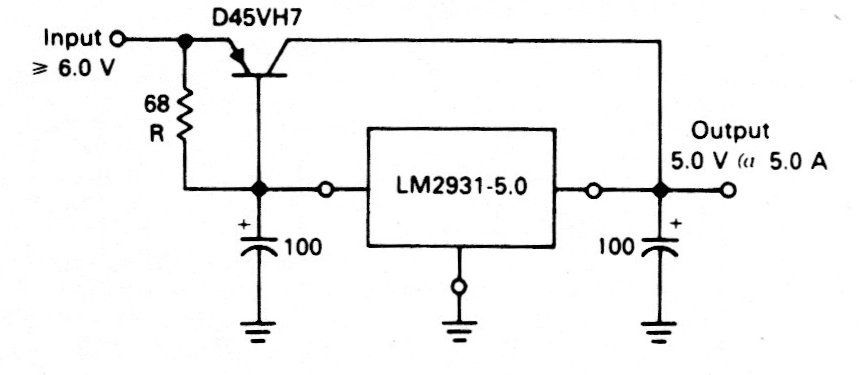

This high current regulator with low voltage drop was found in the datasheet of the used integrated circuit itself. The transistor accepts an equivalent and must be provided with a heat sink.
