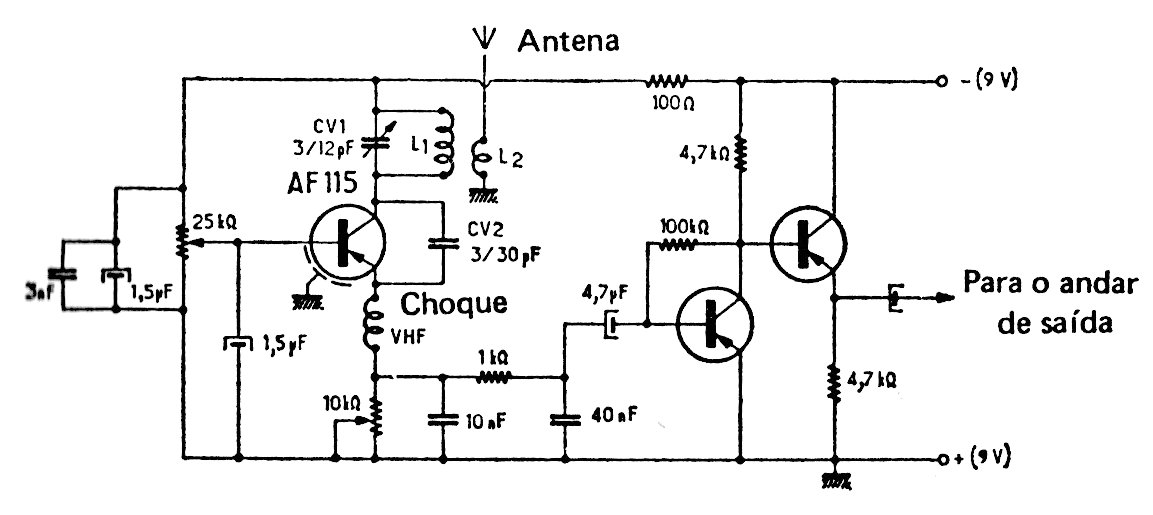

Taking advantage of the same basic configuration of the super-regenerative detector of the previous circuit (CB19596E), we have this tuner from the same period that applies the audio signal to a power amplifier stage or an external amplifier. The circuit is from the 70s and the transistors are germanium from that time.
| Clique na imagem para ampliar |
