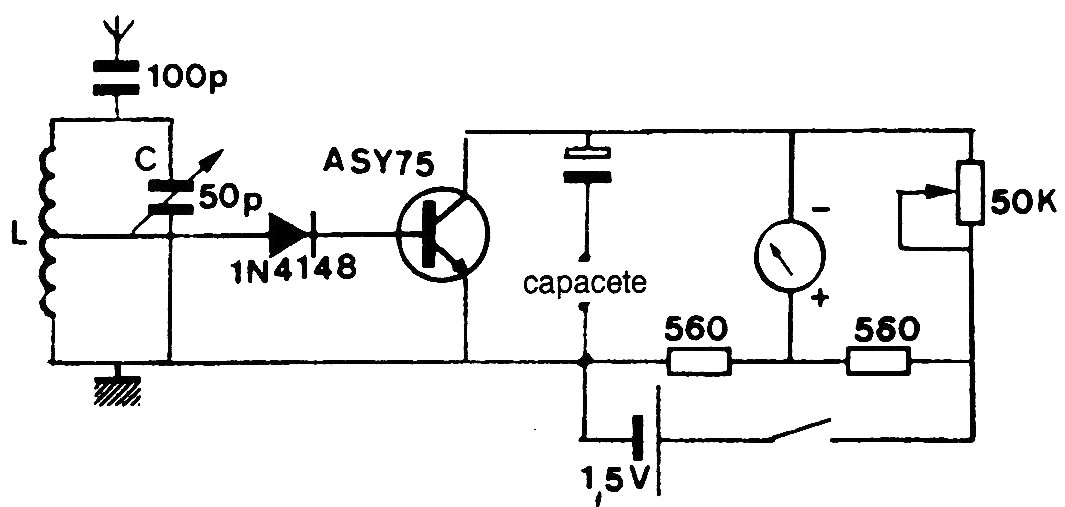

This circuit can operate between frequencies from 1 to 15 MHz depending on the coil. For 3.5 MHz the coil has 80 turns with a central wire 28 socket in the form of 2 cm without core. The circuit is from an old European documentation and the transistor can be the BC548. The instrument is 200 uA full scale.
