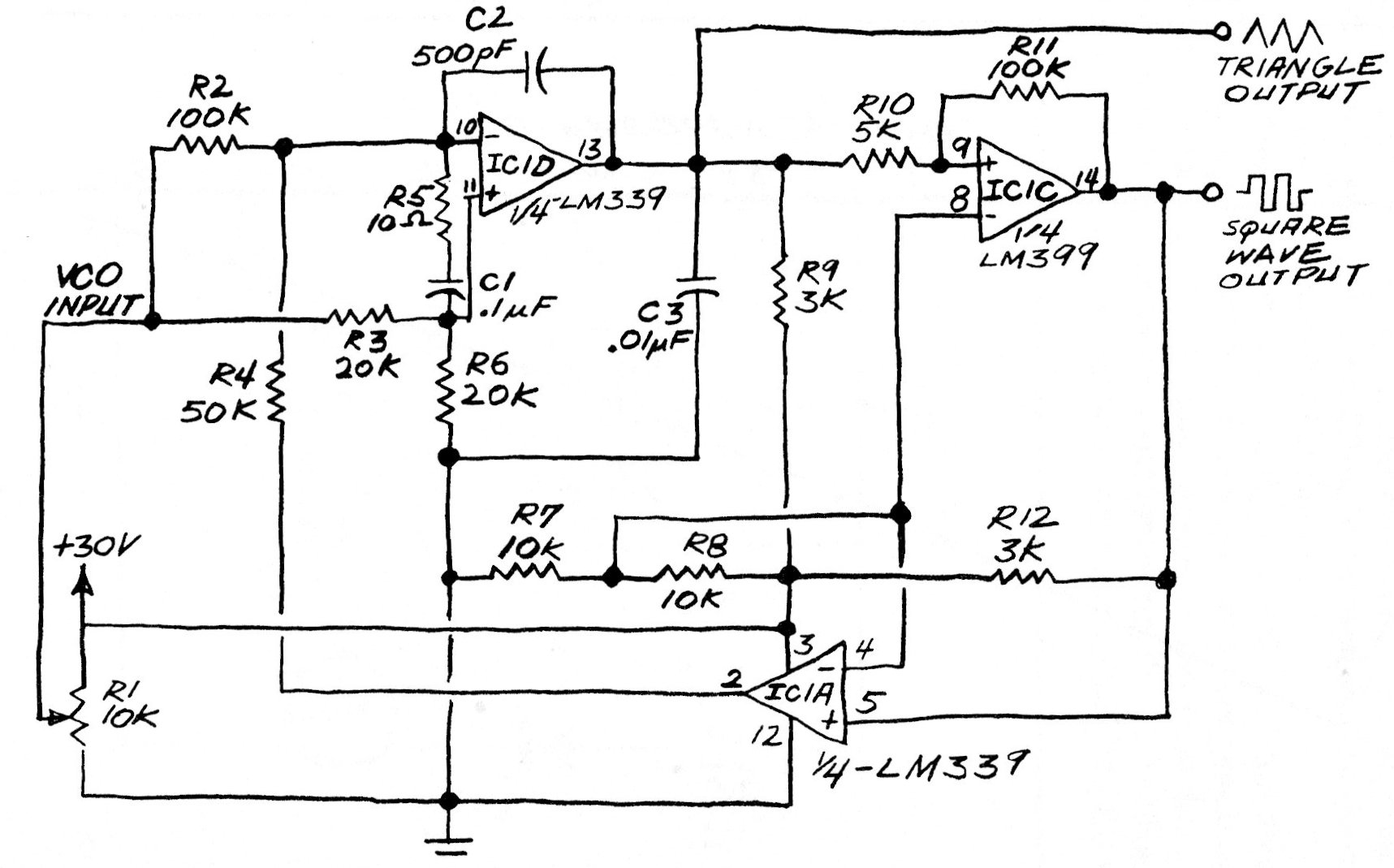

This circuit is based on the voltage comparators contained in the LM339 integrated circuit. The circuit is from a 1991 documentation and must be powered by a simple 30 V source. With the components used, the frequency varies between approximately 5 and 50 kHz.
