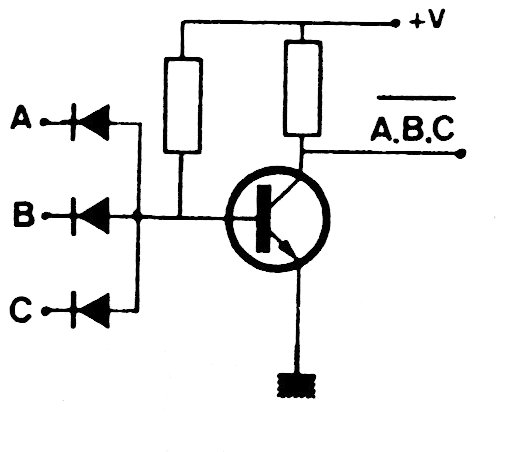

In the figure we have a simple configuration with a general-purpose transistor for a 3-input NO-AND or NAND gate. The diodes are general-purpose, and the resistors depend on the voltage of the logic used.
Nand Gate with 1 Transistor I (CB19882E)
