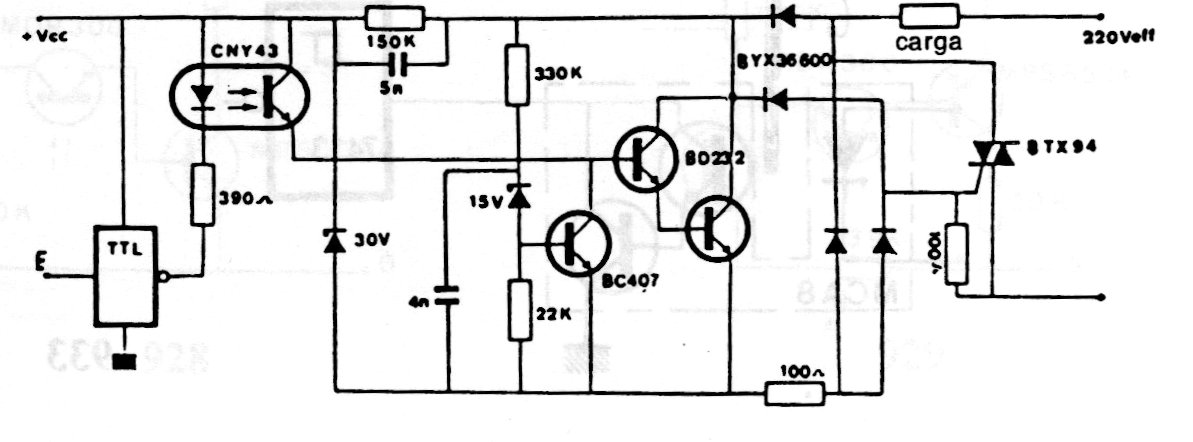

This circuit was obtained in European documentation from the 1980s. However, the transistors and the optical coupler can be replaced by modern equivalents. The triac is according to the power of the controlled load and must be equipped with a heat sink.
