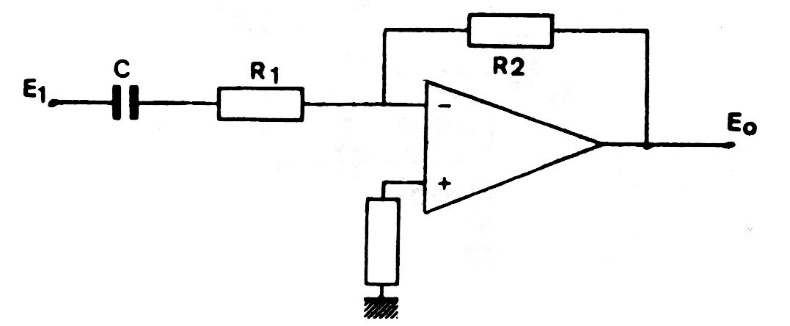

In the figure we have the way to use a common operational amplifier for AC signals. The resistor without value is equal to R1 and the gain depends on the relationship between R2 and R1. The power supply must be symmetrical according to the operational amplifier.
