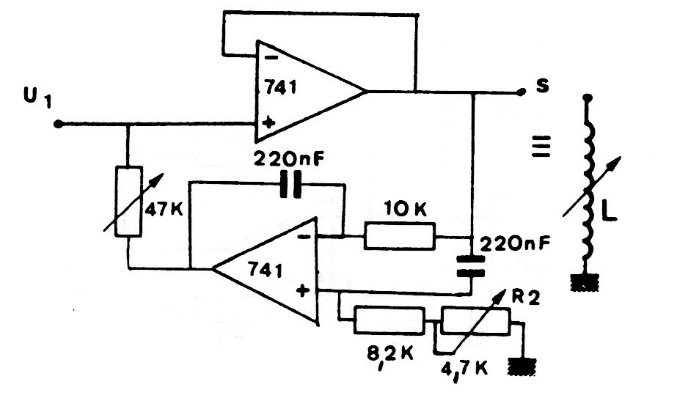

This circuit simulates an inductance that depends on the values of the components used, but that can be varied over a wide range of values. Operational Amplifiers must have symmetrical fonts and equivalent types can be used.
| Clique na imagem para ampliar |
