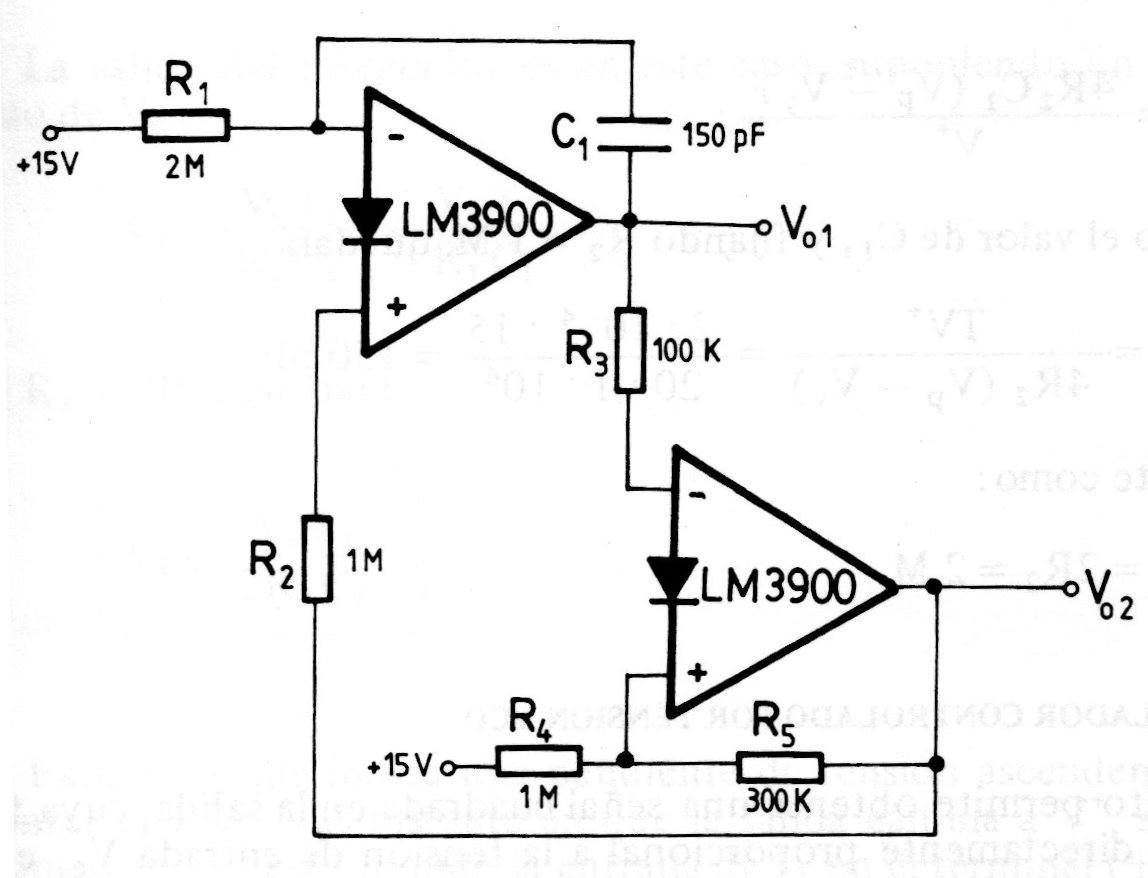

In the figure we have the way to implement a circuit that generates triangular and square signals using an LM3900 transconductance operational. The frequency depends on the capacitor and the resistors, which can be changed, depending on the application. The circuit is from a manual of integrated circuits from the 90s.
