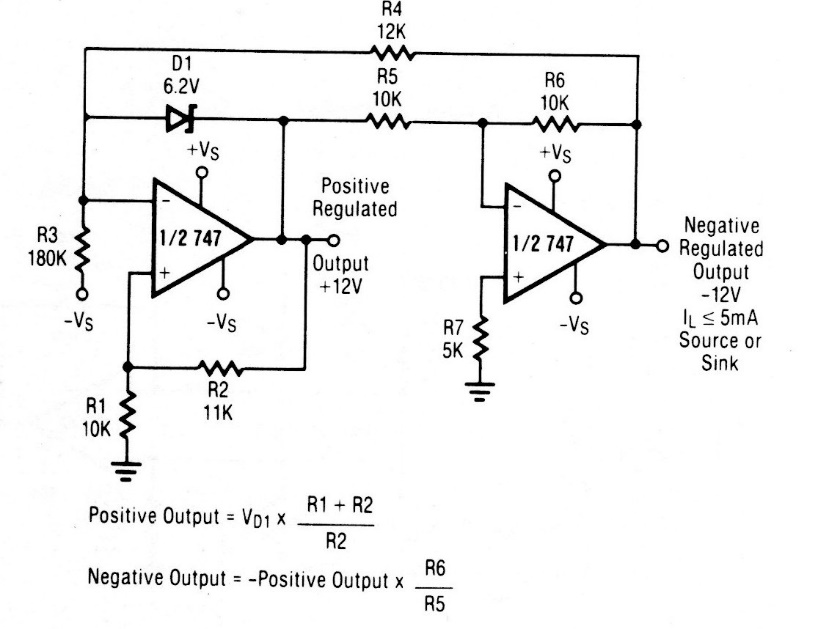

The 747 operational amplifier used in this circuit is not very common today, but the configuration can be implemented with more modern operational amplifiers. The circuit is from the 80s component datasheet.
| Clique na imagem para ampliar |
Negative and Positive References (CB19730E)
- Details
- Written by: Newton C. Braga
