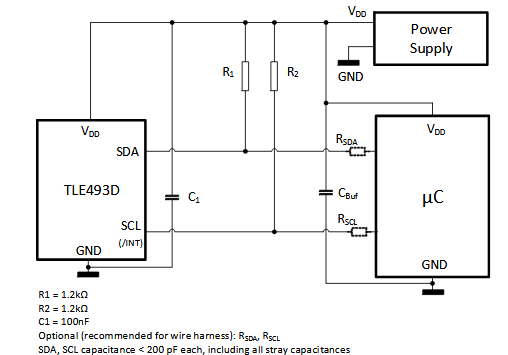

This shield circuit for microcontroller with the TLE493D sensor is from Infineon's component datasheet. The component values are given next to the diagram and in the datasheet the reader can obtain more information about its use.
Hall sensor TLE493D (CB19654E)
