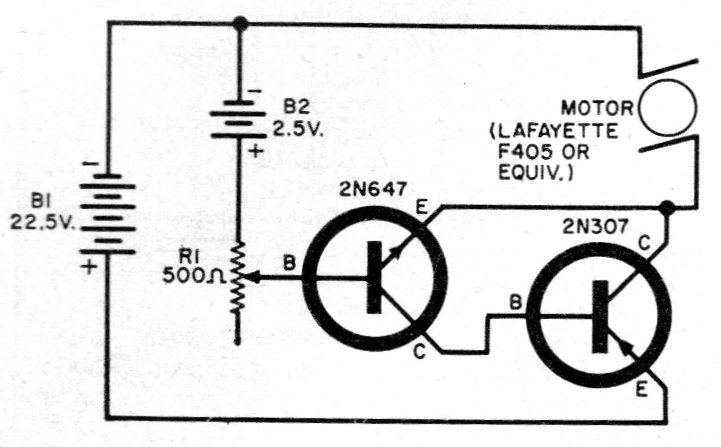

This control of DC motors for currents up to about 200 mA was obtained in an American publication of 1961. Transistors can be modern equivalents such as BC548 for NPN and BD135 for PNP. Lower voltage motors can be controlled with the equivalent, in the case of 3 to 12 V.
| Clique na imagem para ampliar |
