Triggering Fluorescent Lamps (CB19333E)

Details
Written by: Newton C. Braga

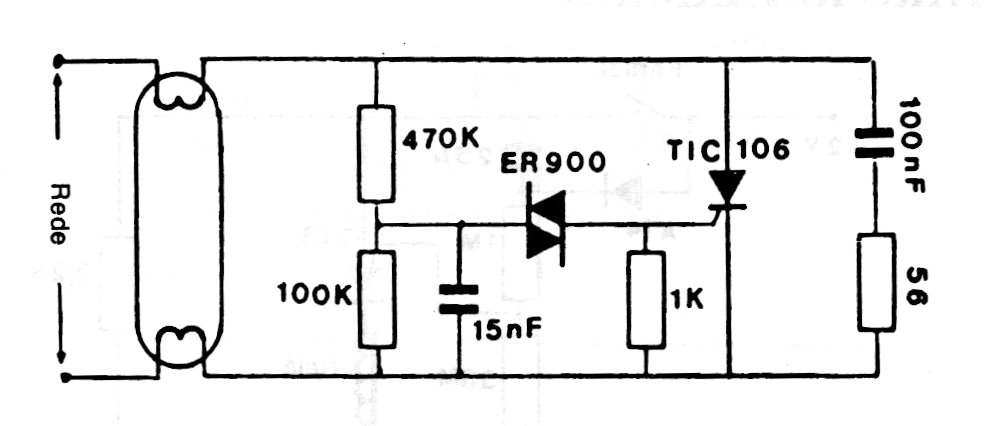

The starter circuit shown in the figure was found in an old European documentation. The circuit makes use of an SCR which is still common and the diac can be of any type.




| Clique na imagem para ampliar |
