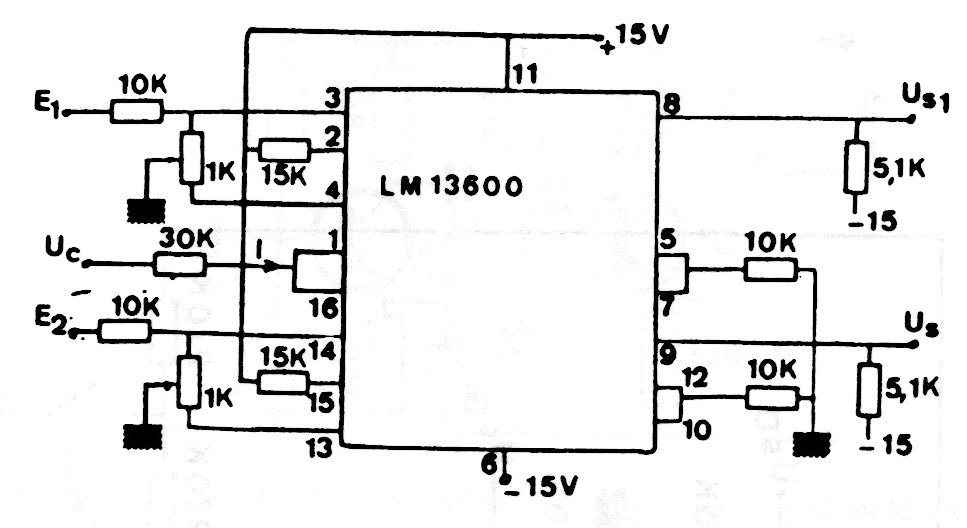

Stereo Volume Control LM13600 (CB19818E)

Details
Written by: Newton C. Braga



This circuit was found in the component's own manual, which is not very common nowadays. Note that the circuit requires the use of a symmetrical power supply.
