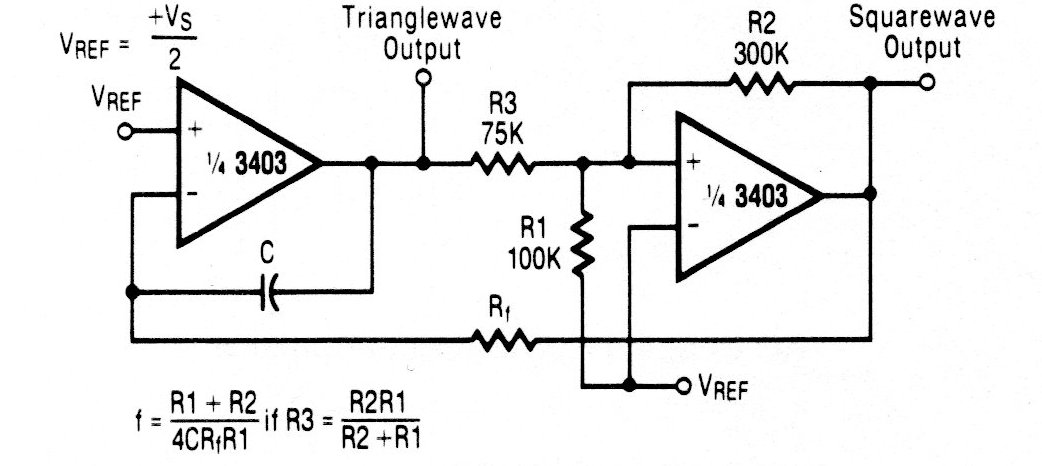

The operational ones used in this circuit are not common today, but the circuit can be implemented with modern equivalents. The frequency depends on C and the resistors according to the formula given next to the diagram.
